MP 34
Process
Semi-automatic milling drilling machine
Semi-automatic milling drilling machine
Model:

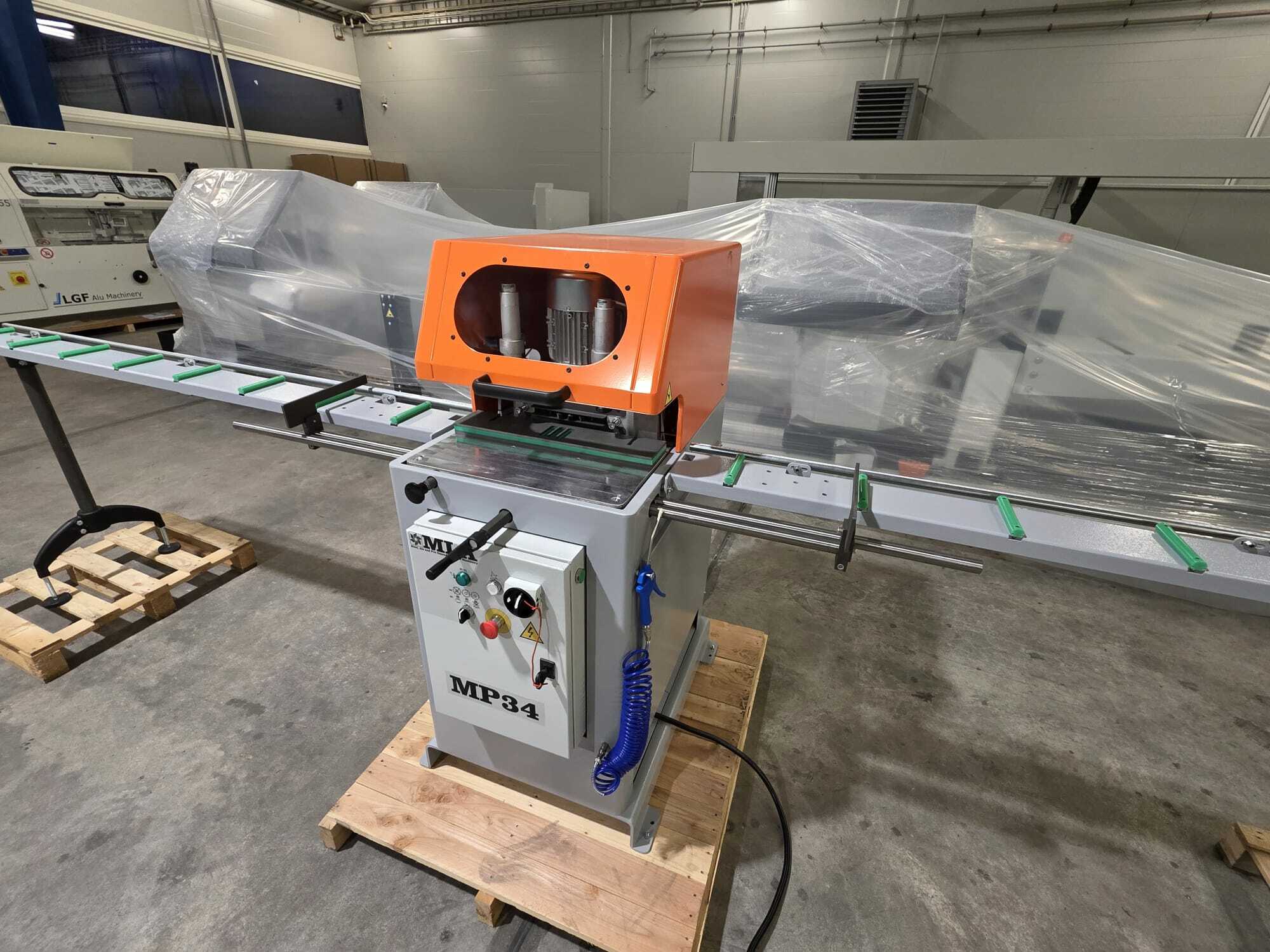

MLA MP 34
MLA MP 34

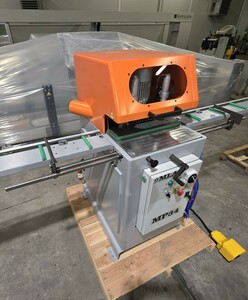

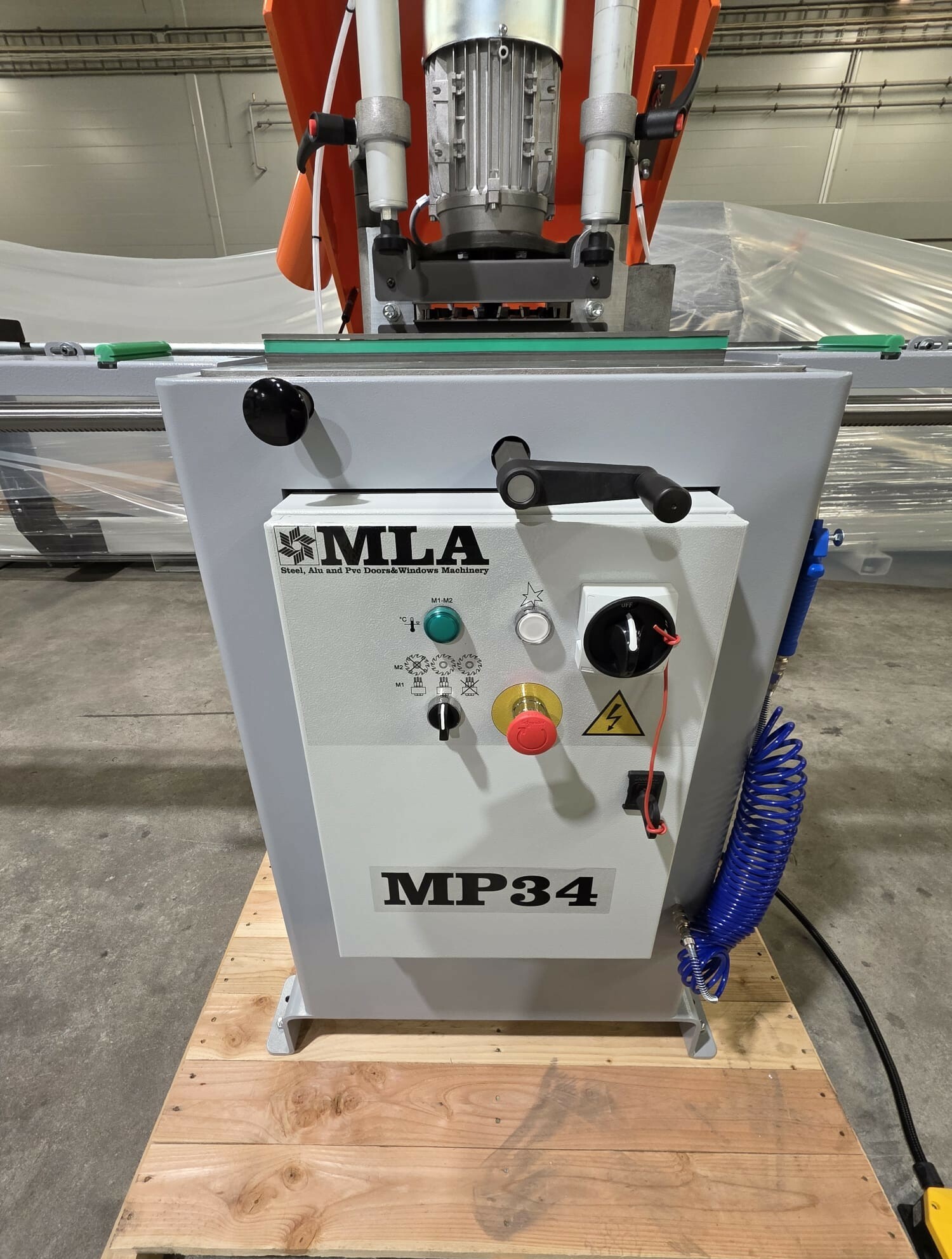

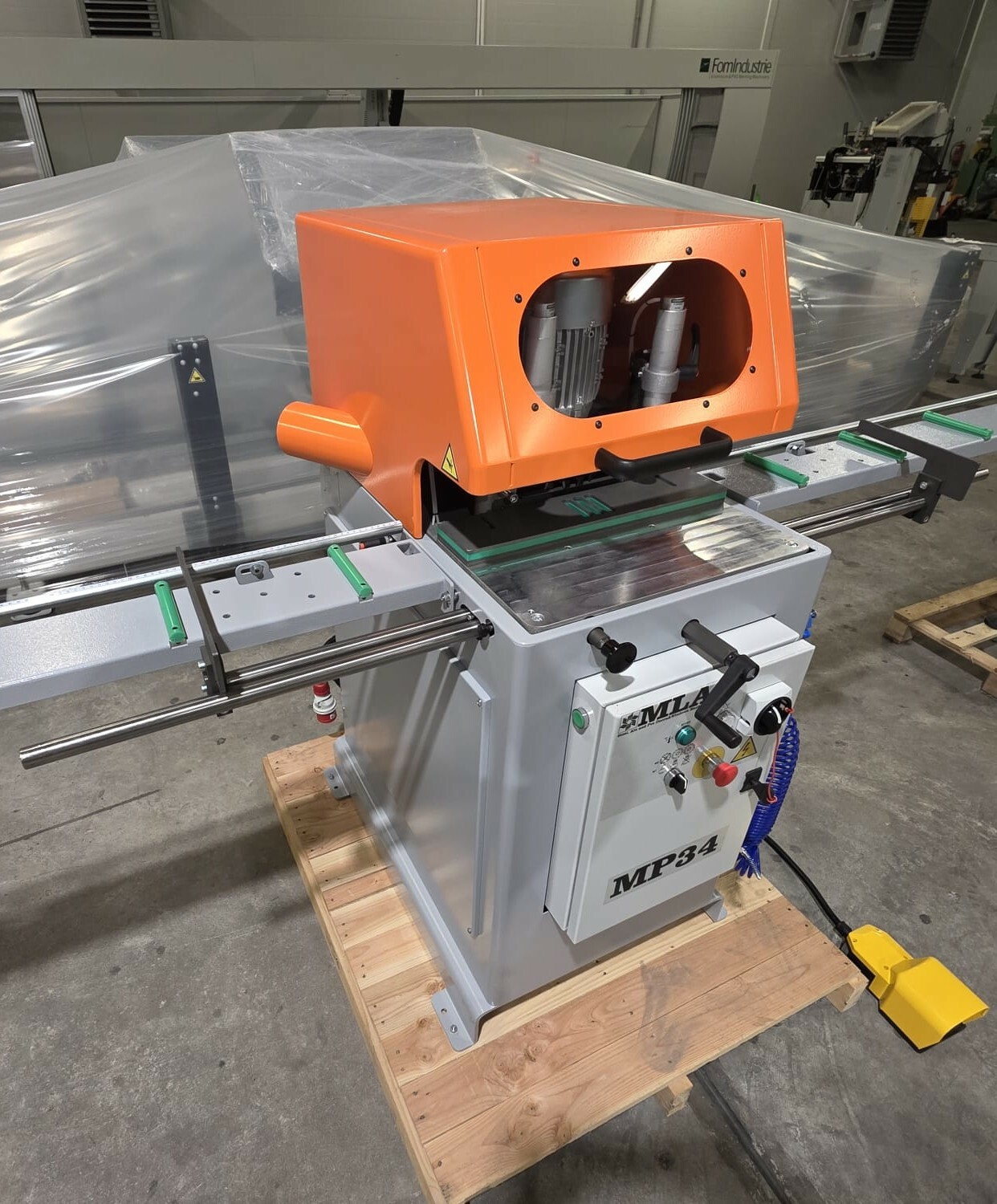

New semiautomatic milling-drilling machine MLA MP 34 for milling and triple drilling needed to insert the handle in pvc doors and windows
Technical specifications:

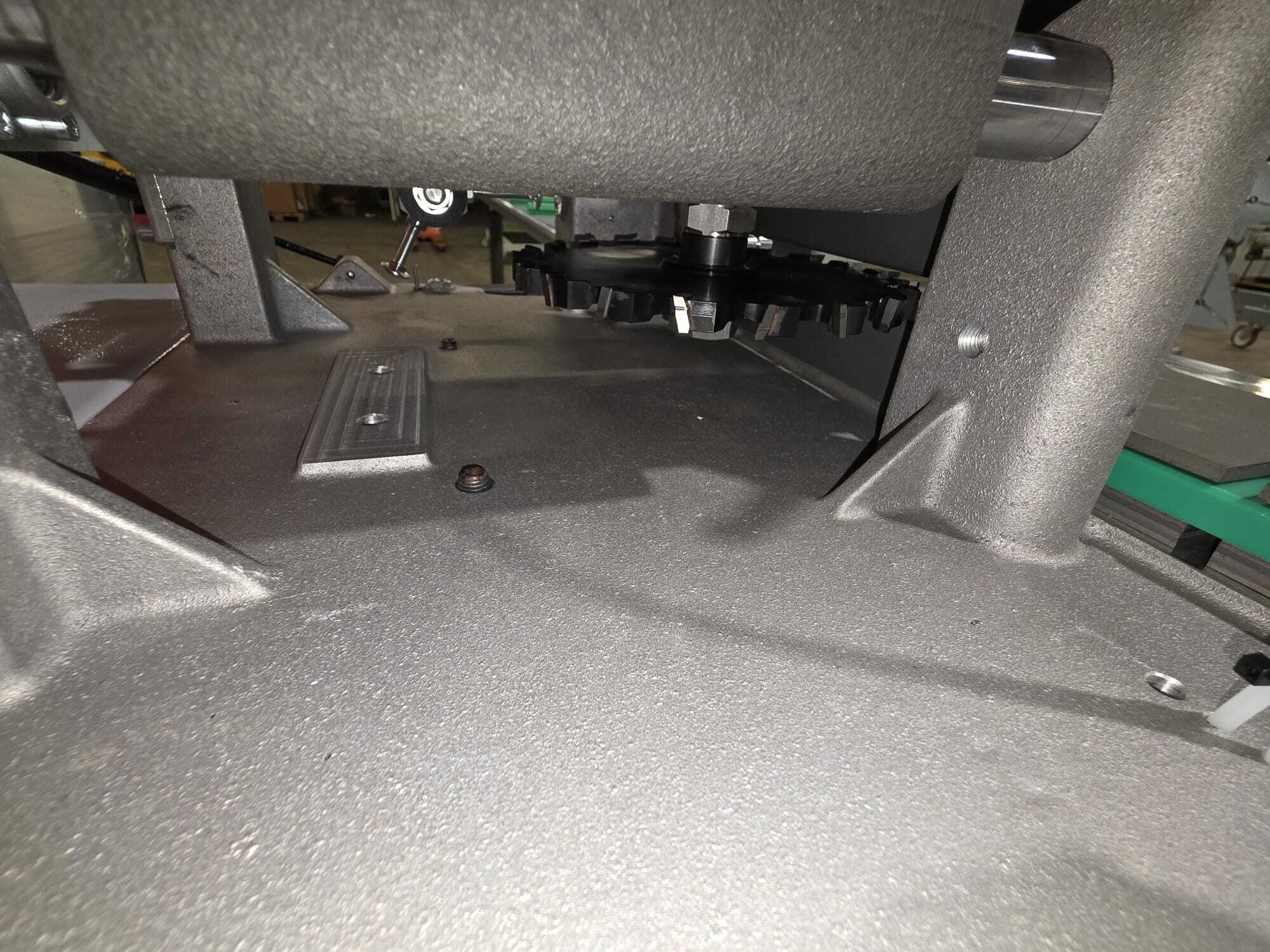

• Horizontal milling motor with servo brakes and milling cutter D180 x 12
• 6 stop revolver for selecting milling depth and width

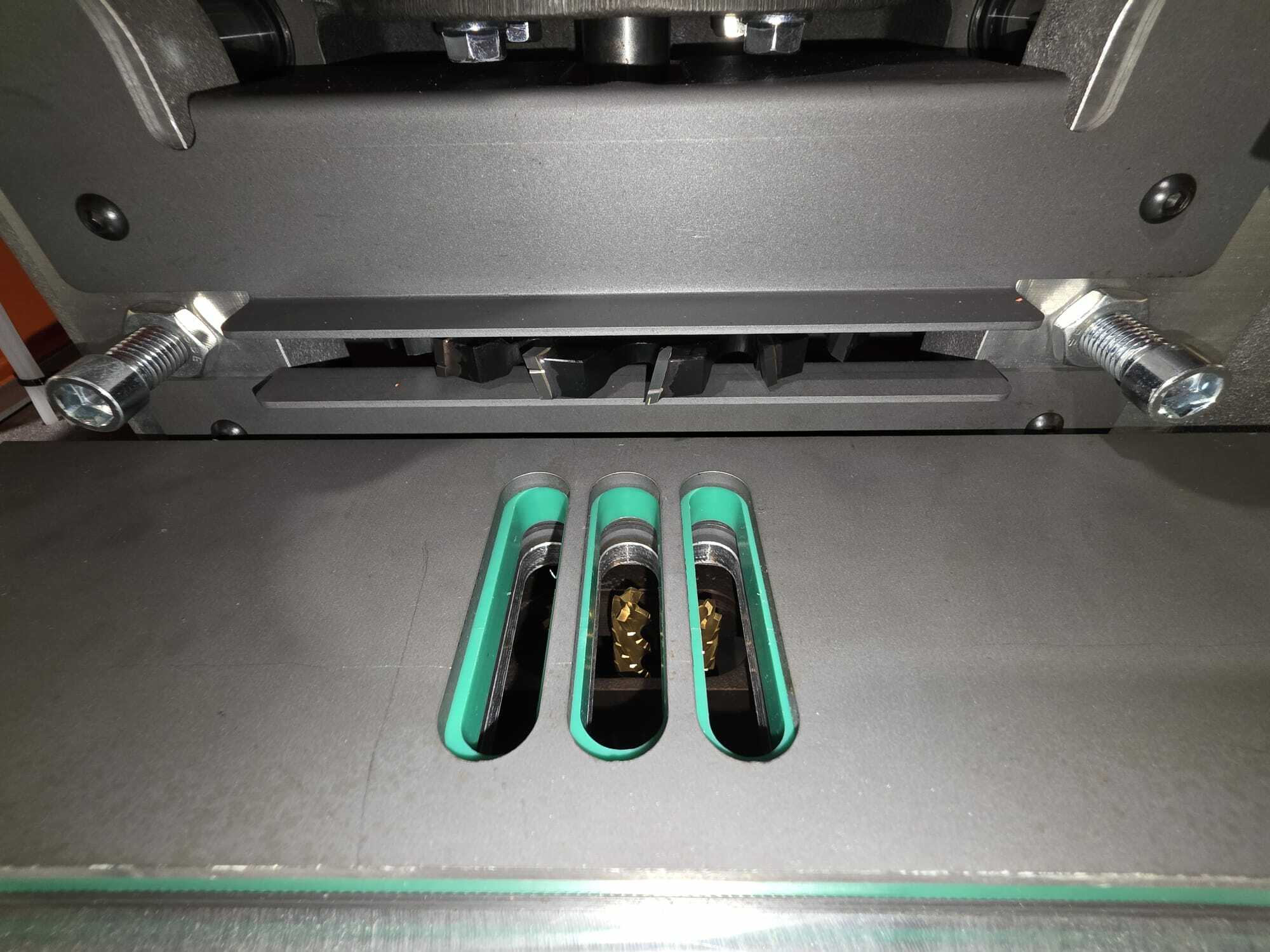

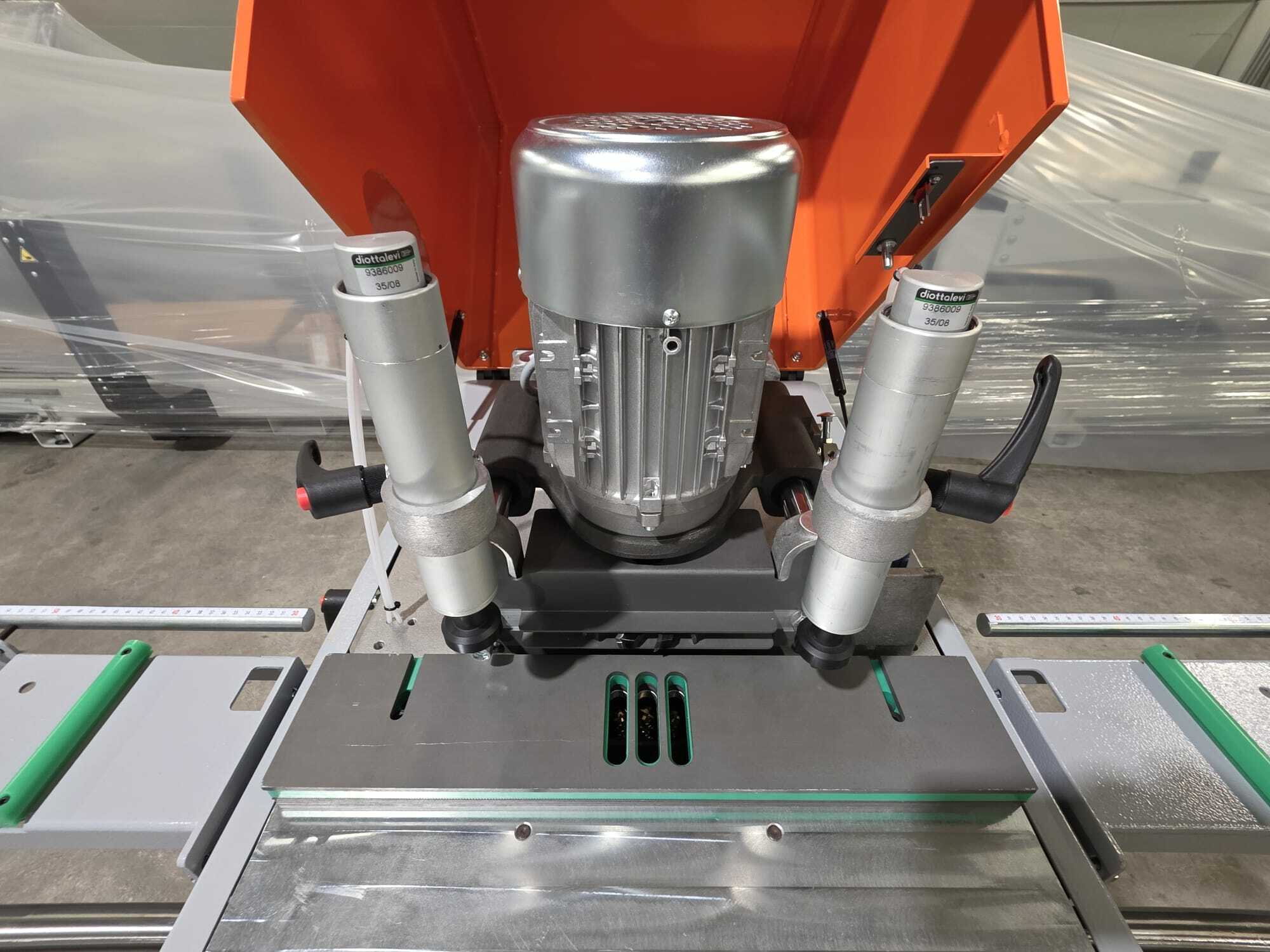

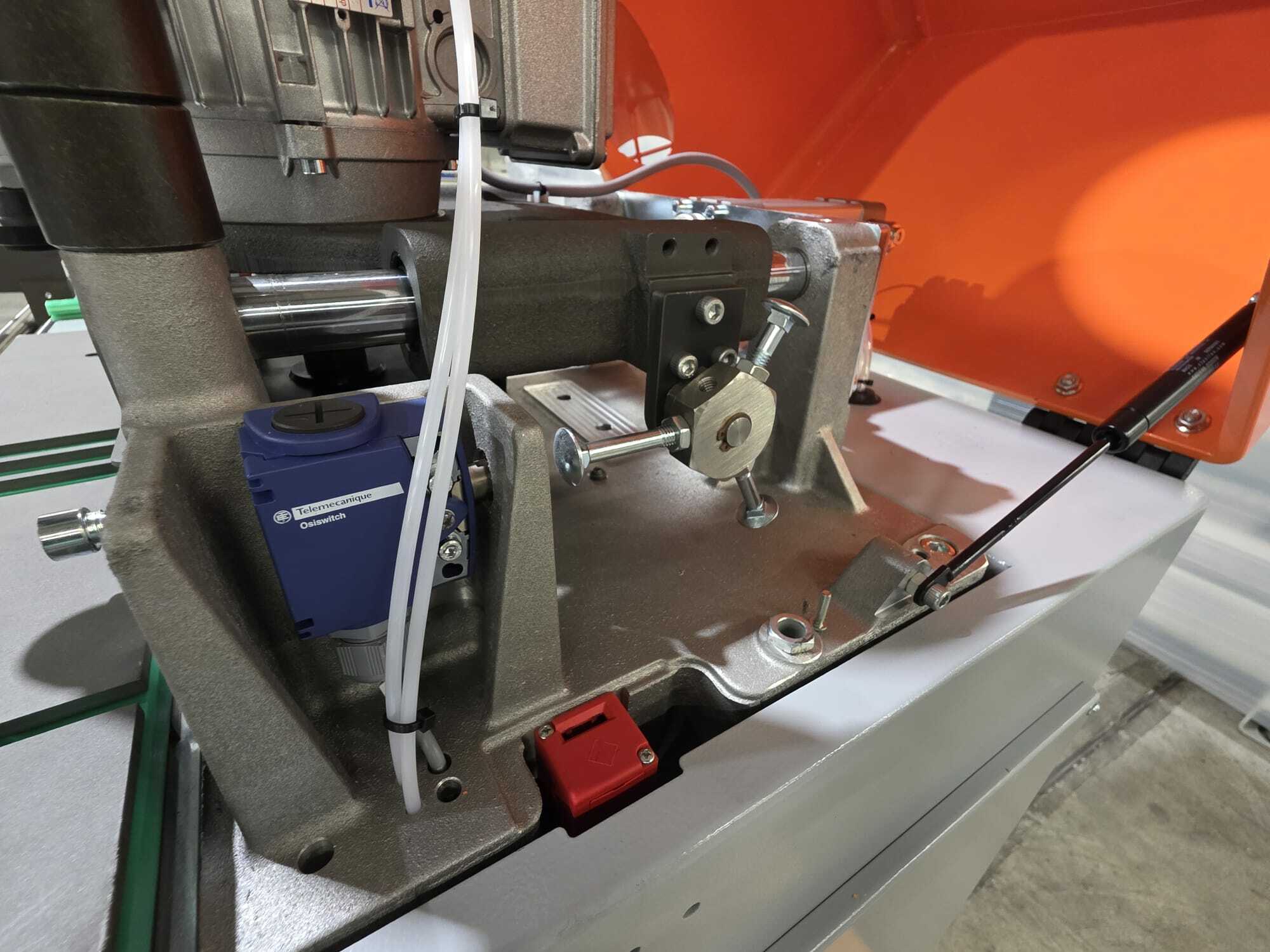

• Drilling unit with drills 10-12-10 and hydro-pneumatic feeding
• Drilling position is adjustable from 10 to 60mm
• Positioning lever is provided with millimetre scale and a “foldaway” adjustment system

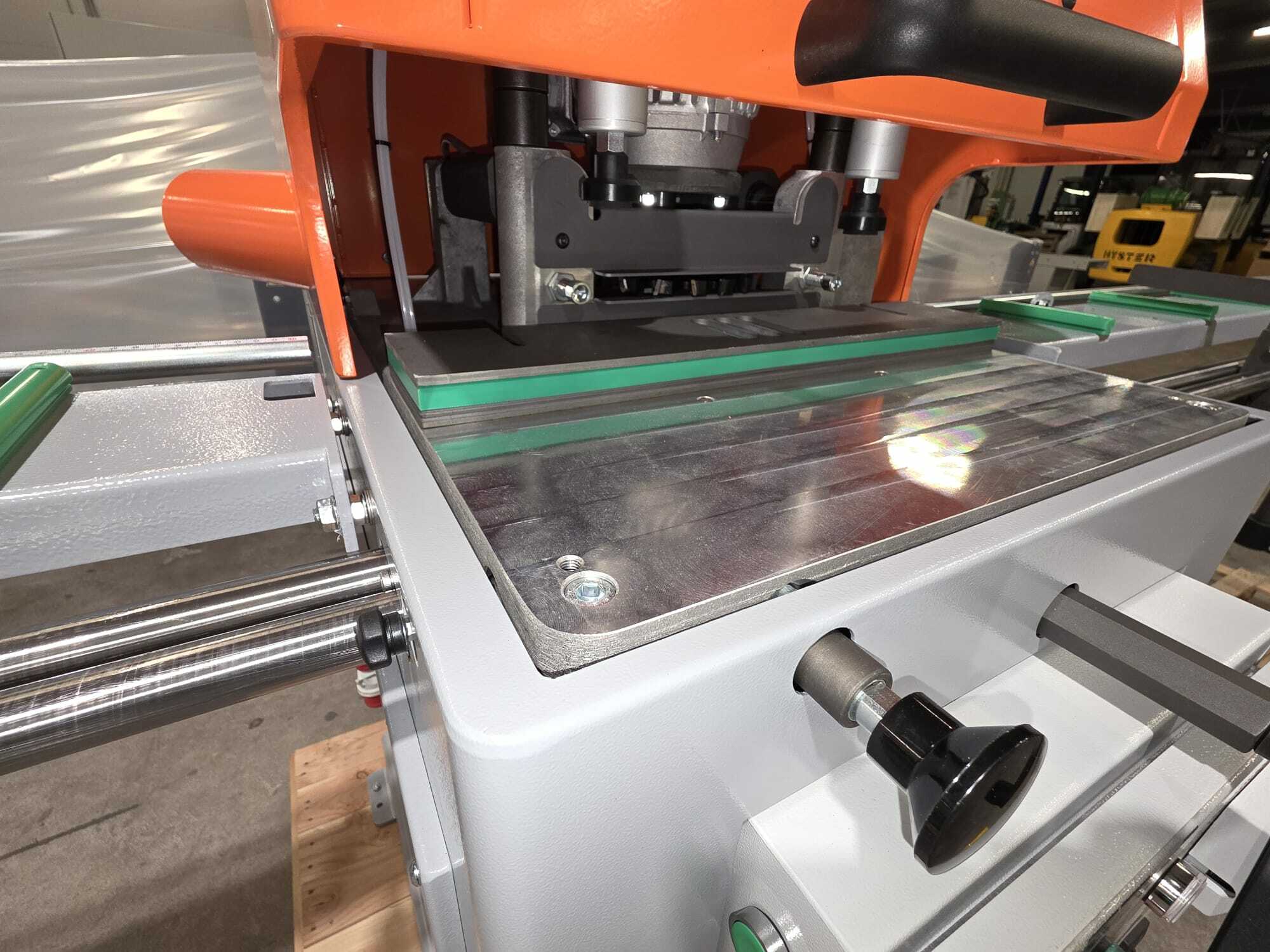

• Pedal for profile clamping and activating clamp cylinderse
• Centering device

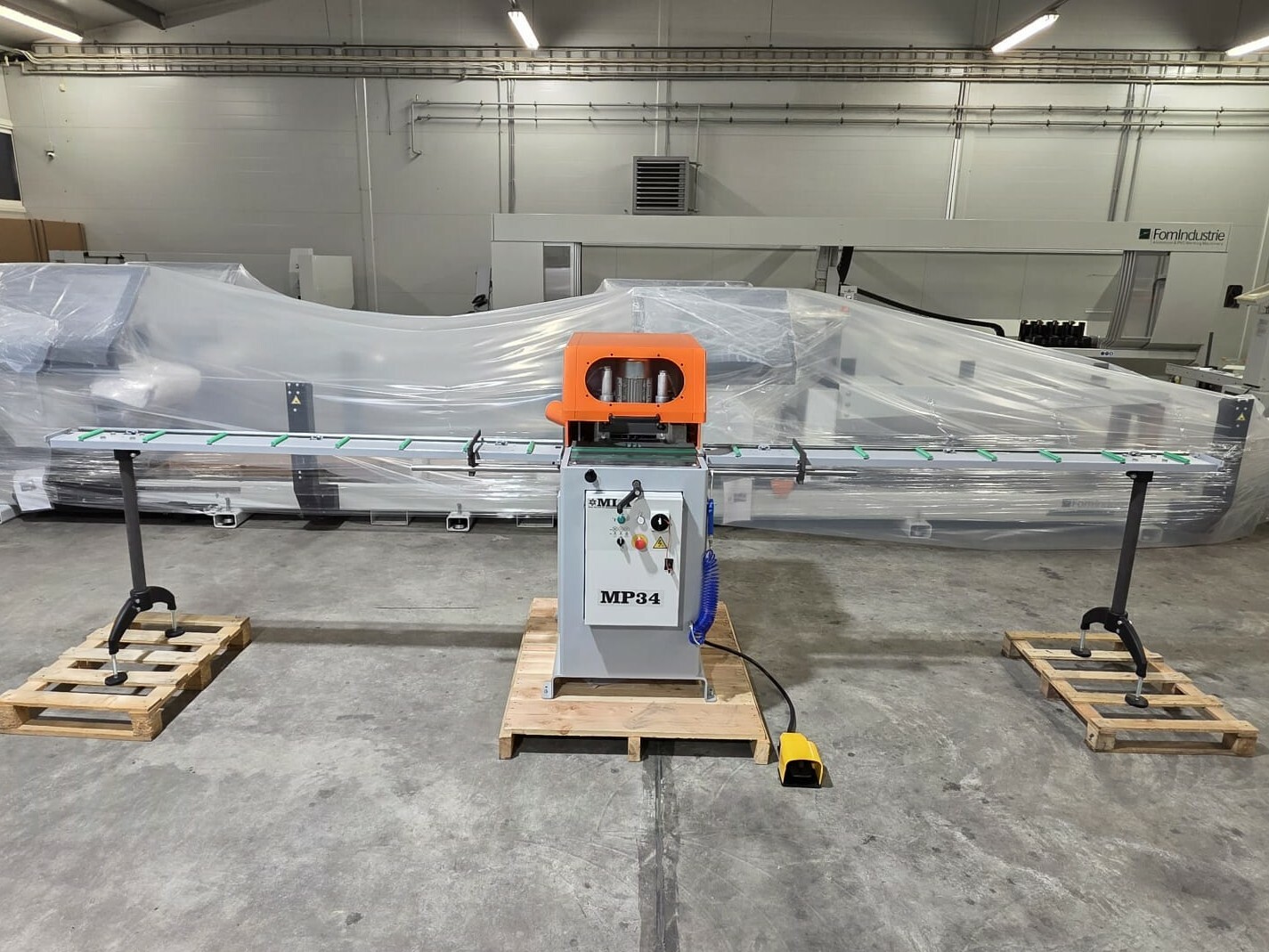

• 2 support bars 1260 mm, left and right with millimetre scale and set of 4 stop device
