GIOBI 600 + ASSOMAK VS 6m + PORTER 4,2m
Single-head cutting machine with blades Ø 600 with neasuring roller conveyor 6m and inlet covveyor 4

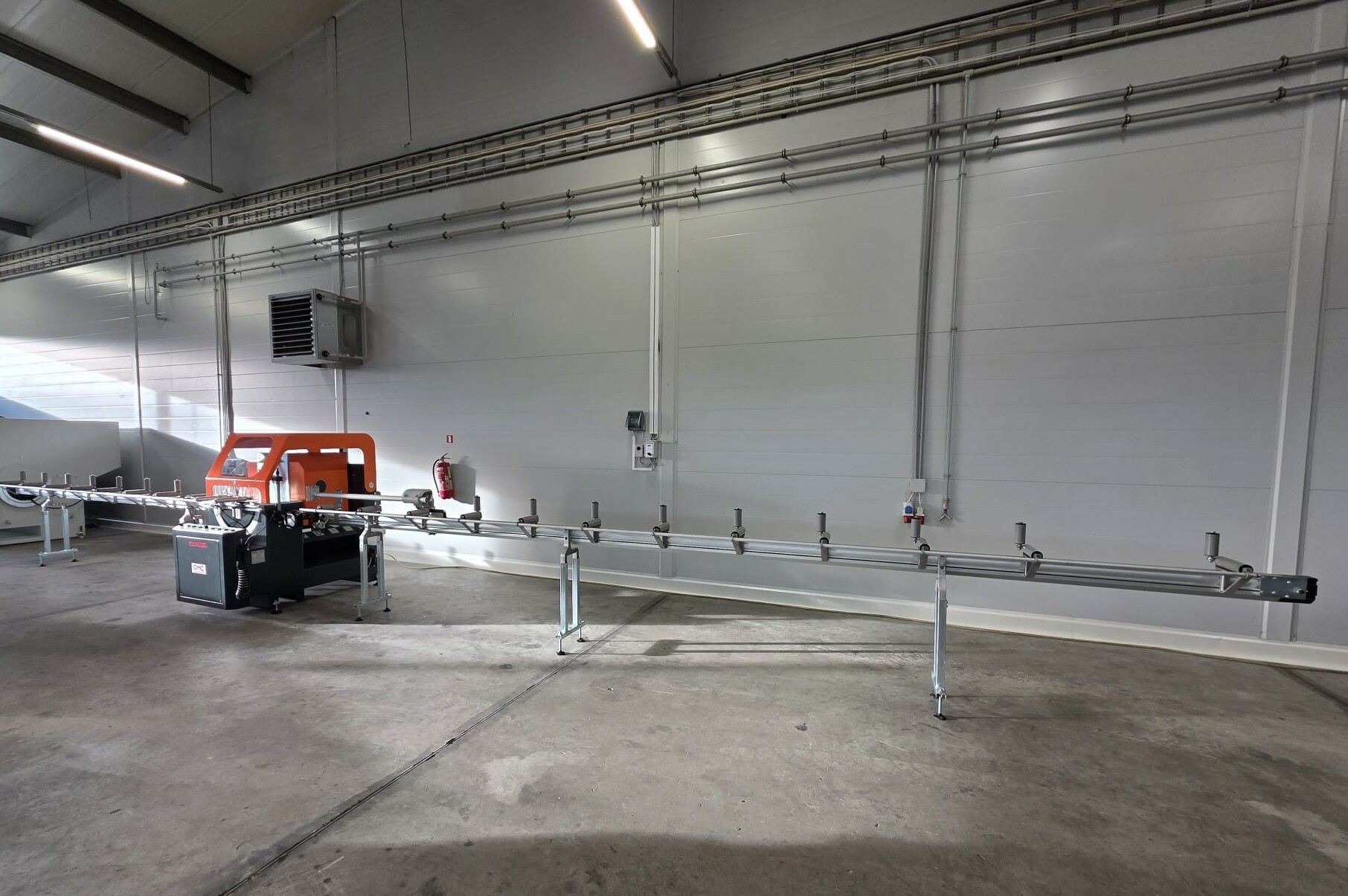

OMC GIOBI 600 + FOM ASSOMAK VS 6m + PORTER 4,2m
Single-head cutting machine OMC GIOBI 600 with measuring roller conveyor FOM INDUSTRIE ASSOMAK VS 6m and inlet conveyor PORTER 4,2m
Year 2021
Condition: ex-demo, like new
- Saw blade D 600 mm
- Hdro-pneumatic feed
- Inclination is pneumatic on both sides, with fixed graduations of 22.5° - 45° - 90°. For intermediate gradations, with manual mechanical stop
- 2 vertical and 2 horisontal clamps
- Spray mist blade lubrication system
- Integral pneumatic protection
- ASSOMAK VS 6m: measuring roller conveyor with digital display and manual length stop positioning
- Minimum cut 0 mm
- Maximum cut 6000 mm
- Measurement reading by encoder
- Positioning precision ± 0,5 mm
- Loading capacity per linear meter: 10 Kg
- Width of bar resting surface: 200 mm
- PORTER 4,2m: inlet roller conveyor
- Loading capacity per linear meter: 10 Kg
Lasbkgwxey Erwfsl Dea
- Width of bar resting surface: 200 mm
